Description
Description

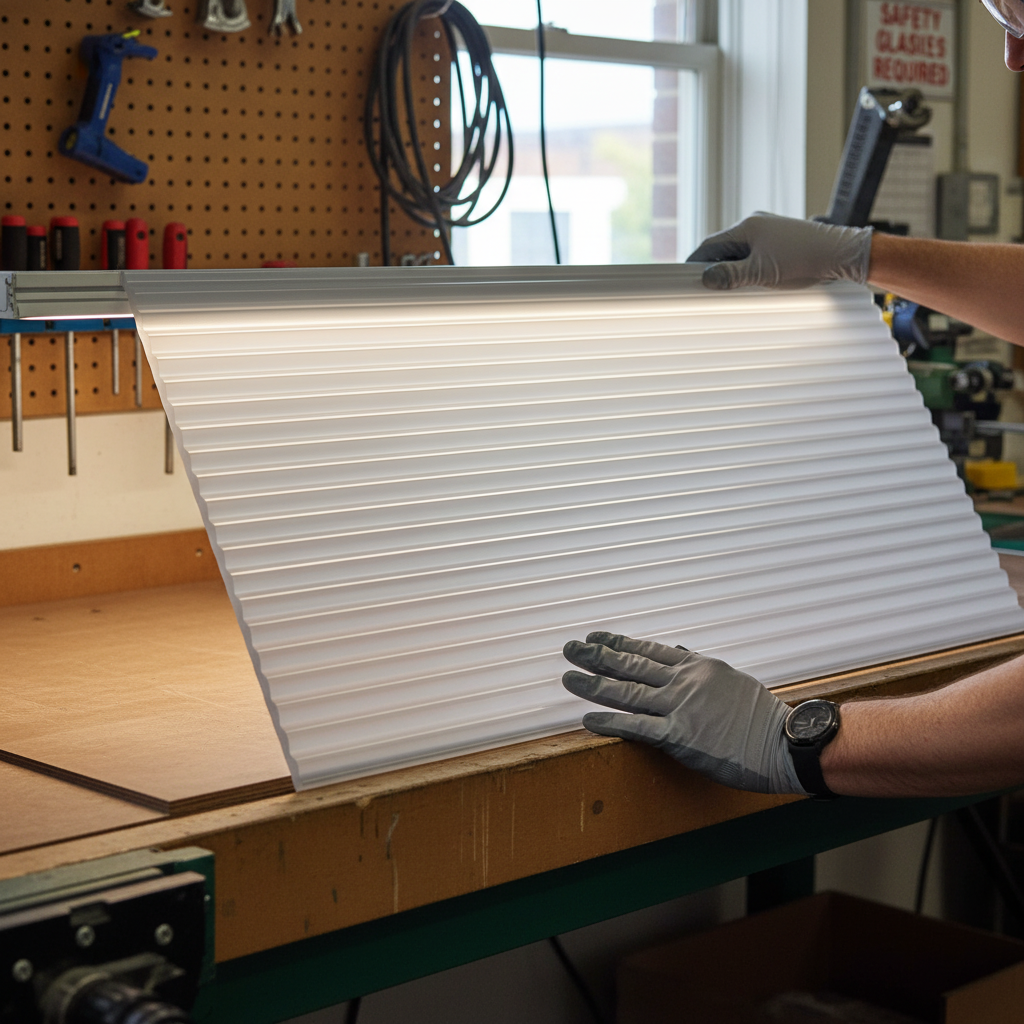

Acrylic Extruded Reeded Sheets are a strong, cost-effective alternative to reeded glass. Impact resistant, UV stable, and easy to maintain, they offer excellent clarity with an element of obscuration, providing many unique possibilities for designers. The ribbed pattern is suitable for a wide range of applications including lighting, retail displays, exhibitions, backlit facias, partitions, and cabinetry.
Please note: the convex reeds of the design run parallel to the sheet length of 2440mm with a nominal reed width of 9mm. Suitable for thermoforming. If you have a requirement for machined or finished components, please ask for more information on bespoke services.
Technical Specifications
| Specification | Measurement |
|---|---|
| Material | Acrylic |
| Shape | Sheet |
| Colour | Opal |
| Density (g/cm³) | 1.19 |
| Water absorption (%) | 0.26 |
| Elongation at break (%) | 4 |
| Service temp long term min (°C) | -40 |
| Service temp long term max (°C) | 70 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
Applications
- Lighting
- Retail Displays
- Exhibitions
- Backlit Facias
- Partitions
- Cabinetry
FAQ
- Can this sheet be thermoformed? Yes, the acrylic reeded sheets are suitable for thermoforming.
- What is the length of the sheet? The sheet length is 2440mm.
- What is the width of the reeds? The nominal reed width is 9mm.
